Description

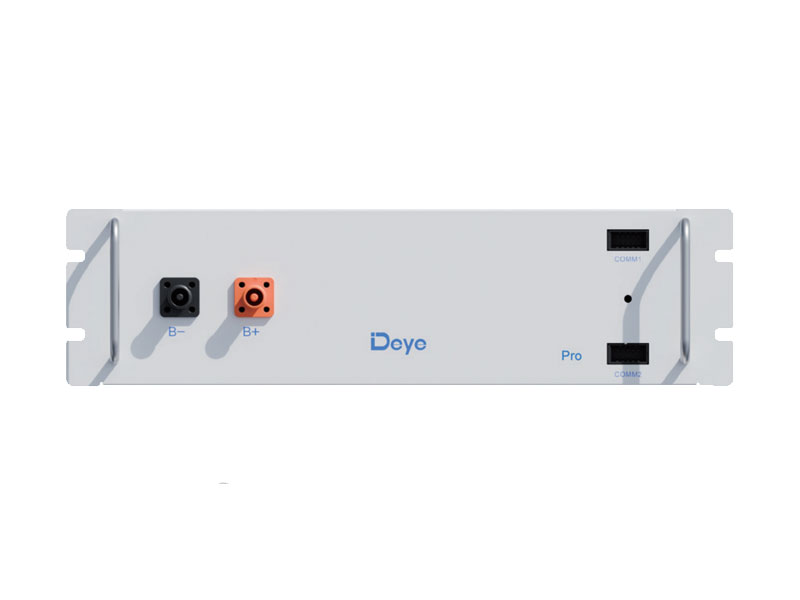

Deye BOS-G Pro 5.12kWh High Voltage Battery Module

The Deye BOS-G Pro 5.12kWh High Voltage Battery Module is a rack-mounted LiFePO4 battery module designed for scalable commercial and industrial energy storage systems. Built for the Deye BOS-G Pro high-voltage battery platform, this module provides reliable energy storage for hybrid solar systems, commercial backup power, and larger ESS installations.

Each BOS-G Pro battery module provides 5.12kWh of rated energy with a 51.2V nominal voltage and 100Ah capacity. Multiple modules are installed in series with a compatible Deye high-voltage battery control box to create larger system capacities ranging from 25.6kWh to 81.92kWh, depending on configuration.

Key Features

• 5.12kWh LiFePO4 battery module
• High-voltage rack-mounted battery design
• 51.2V nominal module voltage
• 100Ah rated capacity
• Designed for Deye BOS-G Pro battery systems
• Scalable system configurations from 5 to 16 modules
• Supports 25.6kWh, 40.96kWh, 61.44kWh and 81.92kWh system sizes
• Intelligent battery management system protection

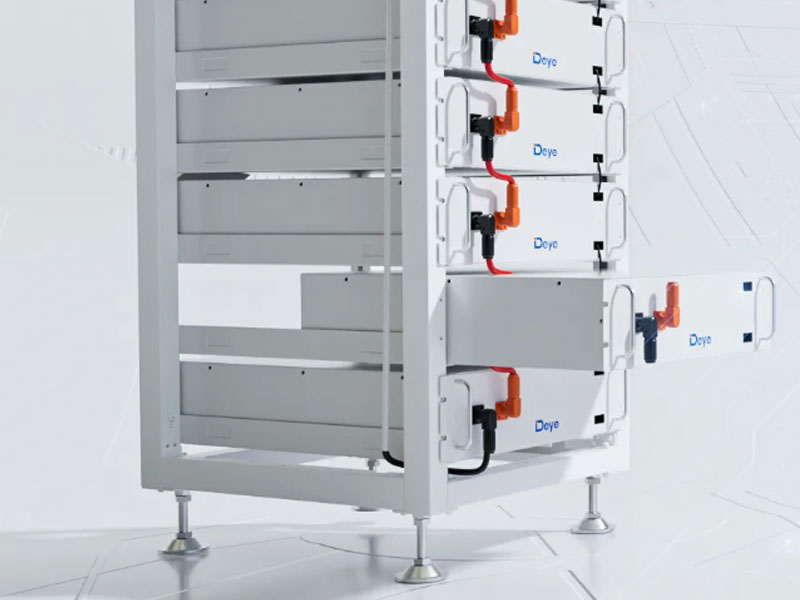

• Rack-mounted 19-inch installation format
• Suitable for commercial and industrial energy storage

Safe and Reliable LiFePO4 Battery Technology

The BOS-G Pro module uses lithium iron phosphate battery chemistry, known for stable performance, long cycle life and strong safety characteristics. The battery system includes protection against over-discharge, over-charge, over-current and abnormal temperature conditions when used with the correct Deye BOS-G Pro system components.

Scalable High Voltage Battery Storage

The Deye BOS-G Pro platform is designed for flexible expansion. A minimum of 5 battery modules is required to build a BOS-G25-Pro system, while larger configurations can use 8, 12 or 16 modules depending on the required energy storage capacity and inverter design.

Commercial Energy Storage Applications

• Commercial solar systems
• Industrial energy storage
• Hybrid solar installations
• Battery backup systems
• Peak shaving applications
• Small-scale C&I ESS projects
• Commercial inverter battery banks
• Solar self-consumption systems

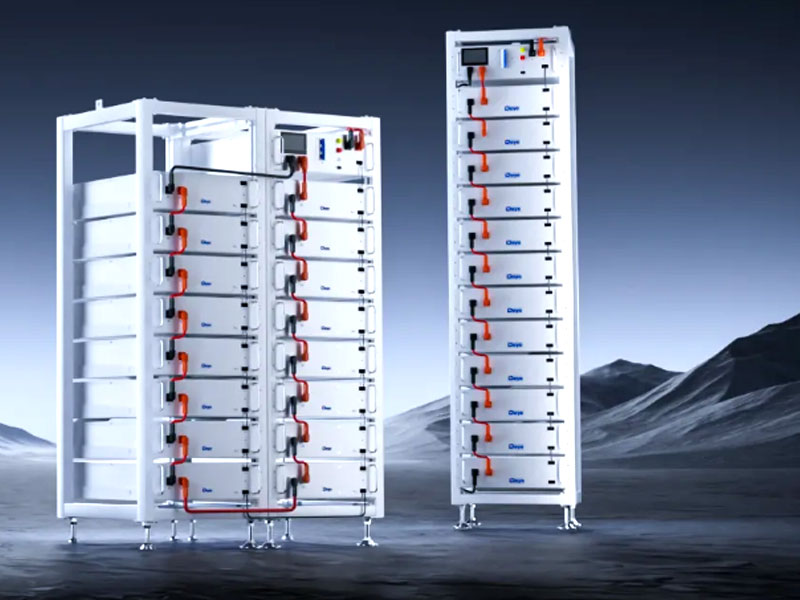

System Configuration Options

• BOS-G25-Pro: 5 modules, 25.6kWh rated system energy
• BOS-G40-Pro: 8 modules, 40.96kWh rated system energy
• BOS-G60-Pro: 12 modules, 61.44kWh rated system energy
• BOS-G80-Pro: 16 modules, 81.92kWh rated system energy

Technical Specifications

• Brand: Deye
• Model: BOS-G-Pack5.1
• Series: BOS-G Pro
• Battery Type: LiFePO4
• Module Energy: 5.12kWh
• Nominal Voltage: 51.2V DC
• Rated Capacity: 100Ah
• Nominal Charge / Discharge Current: 100A
• Peak Discharge Current: 120A
• Charge Temperature: 0°C to 55°C
• Discharge Temperature: -20°C to 55°C
• Storage Temperature: 0°C to 35°C
• Ingress Protection: IP20
• Dimensions: 440 x 585 x 133mm
• Weight: Approximately 46kg
• Installation Type: Rack Mounted
• Recommended Depth of Discharge: 90%
• Cycle Life: 6000+ cycles
• Warranty: 10 Years
• Certifications: UN38.3, CE, CE-EMC, IEC62040, CEC, VDE
