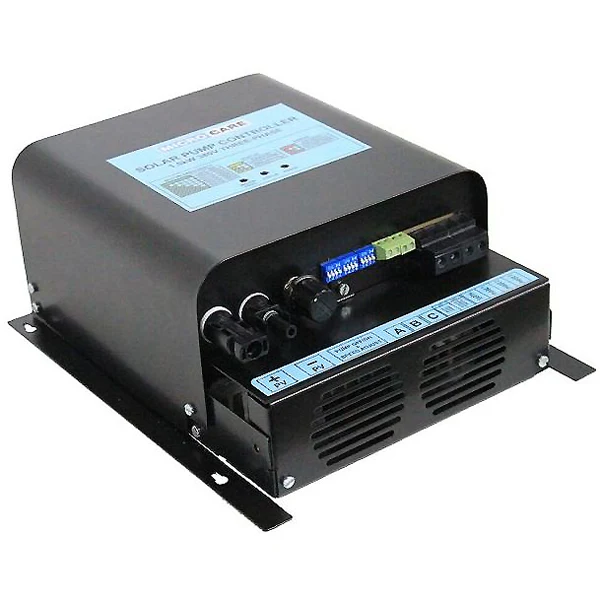

Microcare Portable 1.5kW 380V-220V Solar Pump Inverter

Features
 • Surge Protection.
 • Input Voltage of 450Vdc – 1000 Vdc.
 • Compatible with any three-phase 380V motors.
 • LED status feedback.
 • High – Low water probes.
 • Float switch input.
 • Trip and restart controls.
 • Built in Variable Speed Drive (VSD).
 • Unique overdrive feature allows lower PV Voltage operation.
 • IP44 rated.
 • No external enclosure box required.
 • Cost effective installation.

Technical
 • Model – 1.5kW/380V Three-Phase.
 • PV Voc Range – 600V – 850V.
 • PV Vmp Range – 450V – 650V.
 • Recommended PV Vmp (Max Efficiency) – 550V.
 • Rated Output Power – 1.5kW.
 • Frequency Range – 5Hz – 65Hz (Programmable).
 • Ambient Temp Range – 0 – 40ºC.
 • Protection – Overload, Short Circuit, Over Temperature, Under Voltage, Over Voltage, Surge Protection.
 • Dimensions (H x W x D) – 285mm x 240mm x 120mm.
 • Warranty – 3 year.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards.
