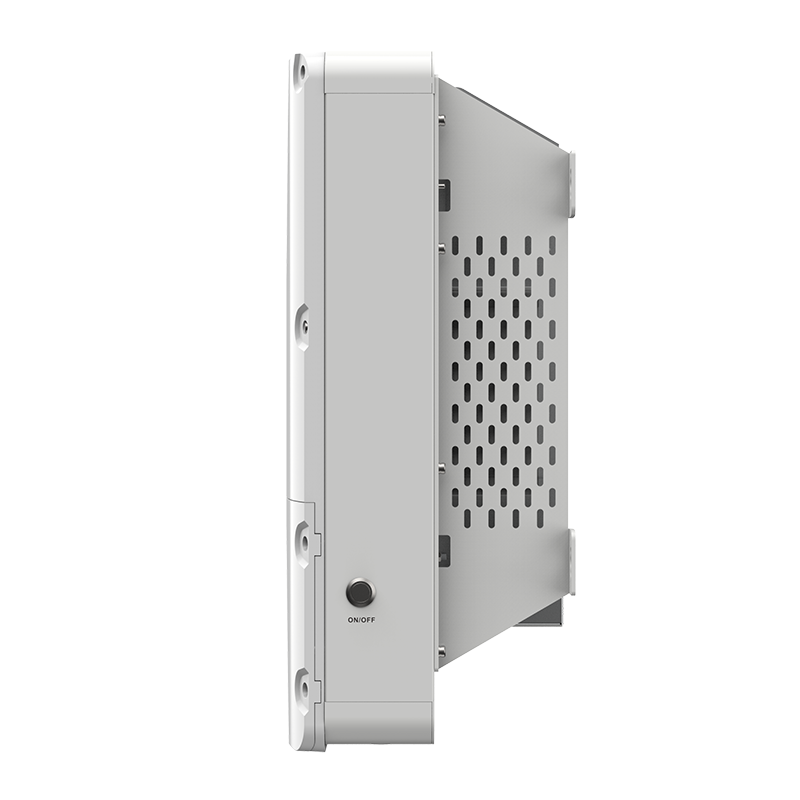

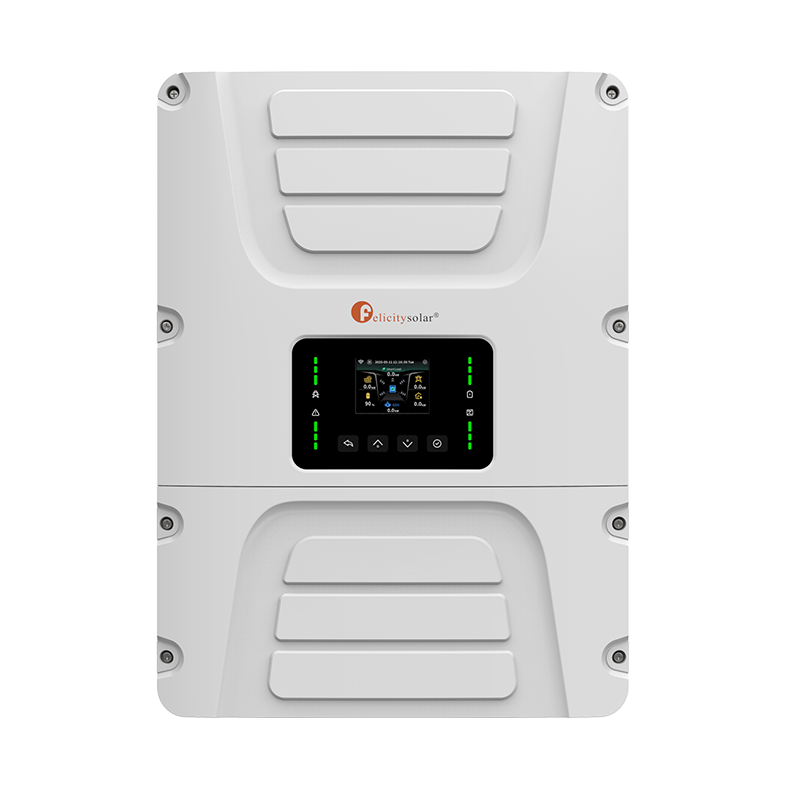

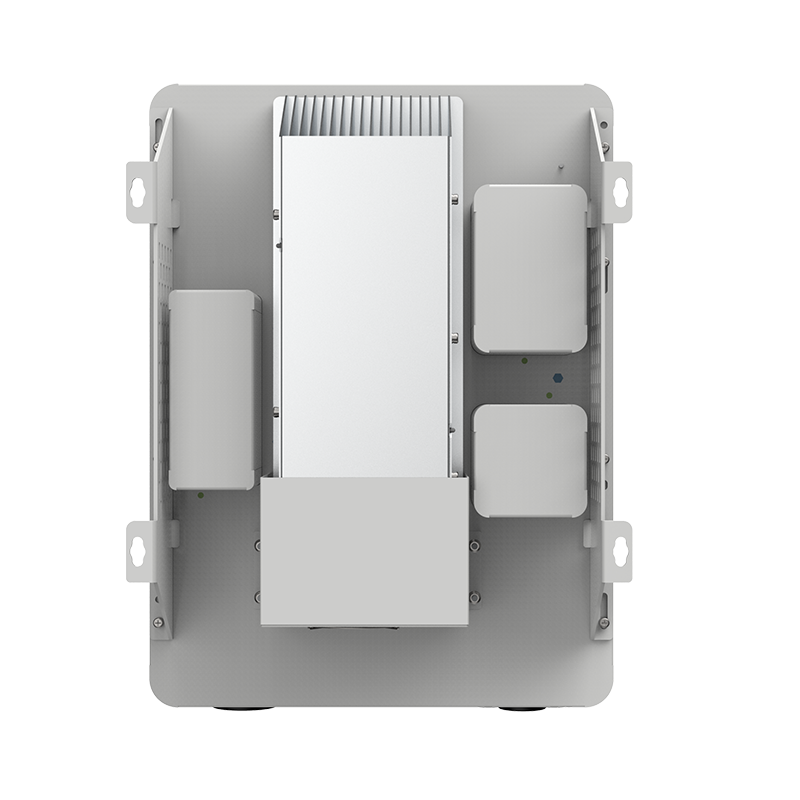

FELICITY SOLAR 6KW OFF GRID INVERTER – IVAM6048P1G1

The FELICITY SOLAR IVAM6048P1G1 6KW Off-Grid Inverter is a versatile single-phase power solution designed to manage solar energy, battery storage, and AC power in one integrated system. With a 6kW rated output, dual MPPT solar tracking, and support for multiple operating modes, it is suitable for residential, commercial, and backup power applications.

The IVAM6048P1G1 combines an inverter, solar charger, and battery charger in a compact unit, helping simplify the design and management of an energy storage system. Its LCD interface allows users to configure important settings, including battery charging and AC/solar charging functions.

Key Features

• 6kW rated output power for demanding household and business loads.
• Dual MPPT trackers help optimize solar energy harvesting from different PV string configurations.
• Up to 12kW maximum PV access power, providing flexibility when designing a solar array.
• 40–60V battery voltage range for compatible battery storage systems.
• 90–425V MPPT voltage range for flexible solar PV configurations.
• Single-phase operation for residential and selected commercial applications.
• Multiple operating modes, including on-grid, off-grid, and UPS operation.
• Utility grid or generator compatibility for additional power-source flexibility.
• Adjustable battery charging current through the LCD interface.
• Automatic restart when AC power is restored.
• Smart export control helps prevent excess energy from being fed back into the grid.
• Remote monitoring for convenient access to system information.
• IP65 protection rating for enhanced protection against dust and water ingress.
• Built-in overload, overtemperature, and short-circuit protection.

Reliable Solar Energy Management

The IVAM6048P1G1 is designed to coordinate solar PV, batteries, AC power sources, and connected loads. Its dual MPPT architecture provides independent solar tracking, which can be useful where panels are installed across different roof orientations or receive different levels of sunlight.

The inverter also supports self-consumption operation, allowing more of the available solar energy to be used on-site.

Flexible Backup Power Solution

With support for off-grid and UPS operation, the FELICITY SOLAR 6KW IVAM6048P1G1 can be incorporated into backup and energy-storage systems for homes, businesses, stores, warehouses, and other applications.

For larger installations, the manufacturer states that the system can support parallel operation of multiple units, providing additional system expansion flexibility.

Technical Specifications

Specification	Details
Model	IVAM6048P1G1
Rated Output Power	6kW
Battery Voltage Range	40–60V
Maximum PV Access Power	12,000W
MPPT Voltage Range	90–425V
MPPT Trackers	2
Phase	Single Phase
Protection Rating	IP65
Communication	RS485, CAN

Specifications are based on Felicity Solar’s published product information.

Ideal Applications

The FELICITY SOLAR IVAM6048P1G1 can be used for:

• Home solar power systems
• Off-grid solar installations
• Solar battery backup systems
• Small businesses and commercial premises
• Stores and warehouses
• Villas and residential properties
• Backup power applications
• Solar energy storage systems

Why Choose the IVAM6048P1G1?

The FELICITY SOLAR 6KW Off-Grid Inverter combines solar conversion, battery charging, and power management in a single system. With dual MPPT technology, 12kW PV input capability, flexible operating modes, remote monitoring, and IP65 protection, the IVAM6048P1G1 offers a flexible foundation for modern solar and backup-power installations.
