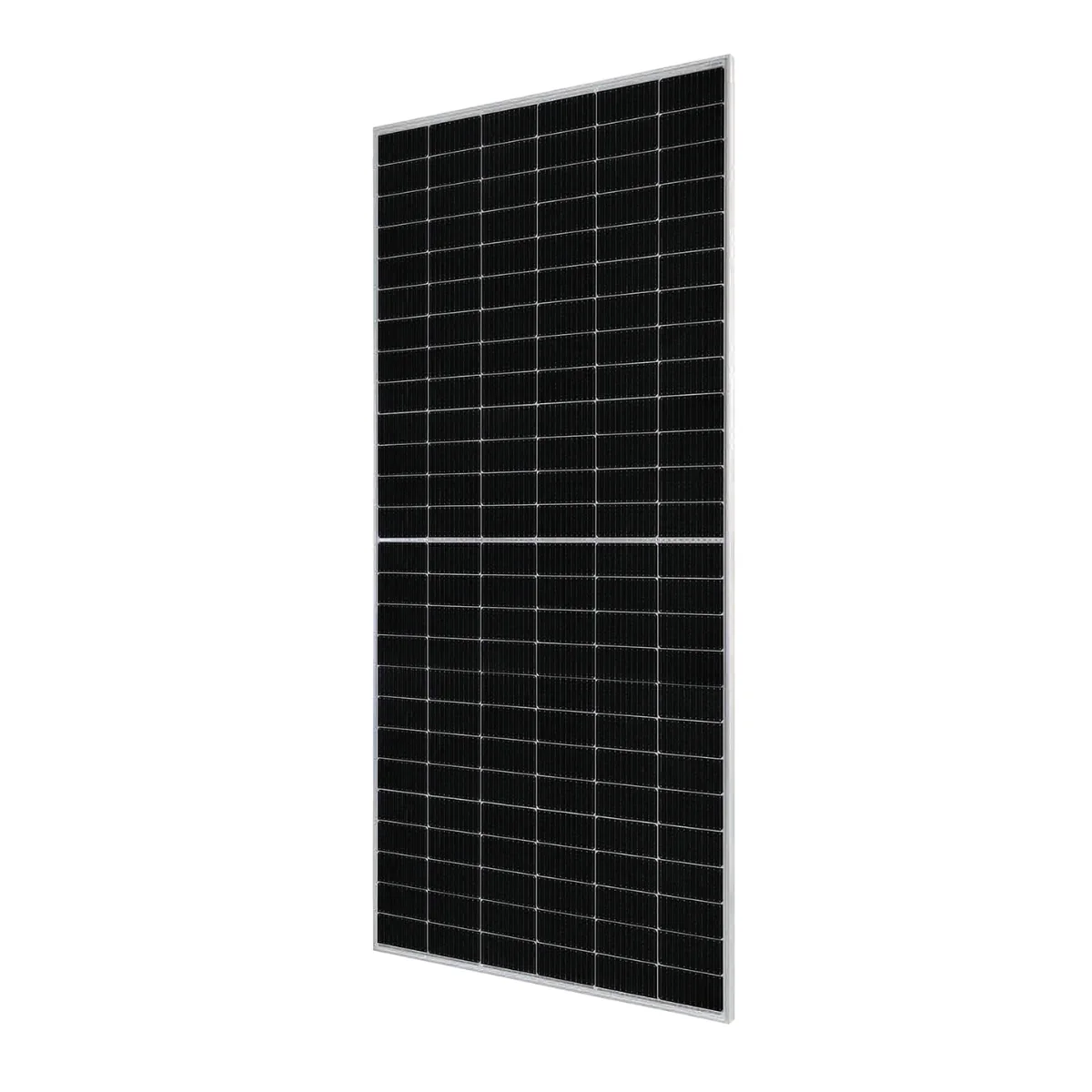

The JA Solar JAM72D40-610/LB is a 610W n-type double glass bifacial solar module designed for high-output solar PV systems. With mono cells, bifacial generation capability and a durable dual-glass construction, it is suitable for residential, commercial, agricultural and larger-scale solar installations where strong energy yield and long-term reliability are important.
Key Features
- 610W rated maximum power output for high-capacity solar installations.
- n-type double glass bifacial module design allows additional rear-side generation when installed in suitable reflective conditions.
- 23.1% module efficiency helps maximise available roof or mounting space.
- Positive power tolerance of 0~+3% provides confidence that the module output will not be below its stated rating under STC.
- Low first-year degradation of 1% and 0.4% annual degradation over 30 years, as stated in the datasheet.
- 1500V DC maximum system voltage supports use in modern PV array designs.
- Dual 2.0mm front and back glass construction supports long-term durability in outdoor solar installations.
Applications
- Grid-tied and hybrid solar PV systems.
- Commercial and industrial rooftop solar installations.
- Ground-mount solar projects and larger PV arrays.
- Residential solar systems where the roof area, inverter and string design are suitable for large-format modules.
- Bifacial installations where rear-side irradiance can be used effectively.
Why Choose This Product?
This JA Solar 610W module is a practical option for installers and system owners looking for a high-power solar panel with bifacial energy-gain potential, n-type cell technology and a long linear power output warranty. Its strong efficiency, positive power tolerance and double glass design make it well suited to reliable long-term PV performance.
Important Notes
- Solar panel compatibility must be confirmed against the inverter, MPPT voltage range, string design and installation conditions before purchase or installation.
- Bifacial gain depends on installation height, rear-side exposure, surface reflectivity and shading conditions.
- Installation should be carried out by a qualified solar installer or electrician in line with applicable South African electrical and PV regulations.
- For Nextracker installations, the datasheet notes that maximum static load requires a compatibility approval letter between JA Solar and Nextracker.
- Customised frame colour and cable length are noted by the manufacturer as available upon request.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | JA Solar |
| Model | JAM72D40-610/LB |
| Product Type | n-type double glass bifacial solar module |
| Rated Maximum Power (Pmax) | 610W |
| Module Efficiency | 23.1% |
| Power Tolerance | 0~+3% |
| Open Circuit Voltage (Voc) | 52.80V |
| Maximum Power Voltage (Vmp) | 44.11V |
| Short Circuit Current (Isc) | 14.57A |
| Maximum Power Current (Imp) | 13.83A |
| STC Conditions | Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
| Rated Max Power with 10% Rear-Side Irradiation | 659W |
| Voc with 10% Rear-Side Irradiation | 52.80V |
| Vmp with 10% Rear-Side Irradiation | 44.11V |
| Isc with 10% Rear-Side Irradiation | 15.74A |
| Imp with 10% Rear-Side Irradiation | 14.94A |
| Cell Type | Mono |
| Number of Cells | 144 (6 × 24) |
| Dimensions | 2333 ±2mm × 1134 ±2mm × 30 ±1mm |
| Weight | 32.5kg |
| Front Glass / Back Glass | 2.0mm / 2.0mm |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Cable Cross Section Size | 4mm² (IEC), 12 AWG (UL) |
| Cable Length Including Connector | Portrait: 300mm (+) / 400mm (-); Landscape: 1400mm (+) / 1400mm (-) |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C~+85°C |
| Maximum Series Fuse Rating | 30A |
| Maximum Static Load, Front | 5400Pa |
| Maximum Static Load, Back | 2400Pa |
| NOCT | 45 ±2°C |
| Bifaciality | 80% ±5% |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | -0.250%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
| Product Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First-Year Degradation | 1% |
| Annual Degradation | 0.4% over 30 years |
| Packaging Configuration | 36pcs/pallet, 720pcs/40HQ container |
| Certifications Listed | IEC 61215, IEC 61730, UL 61215, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, IEC 62941:2019 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards.
