Step into the Future of Solar with Sunman Africa
100W Maximum Power Output
Features:
- Ultra-light: Weighs only 2.1kg, 70% lighter than traditional glass modules.
- Aesthetic: Seamless integration with underlying installation surface.
- Effortless Installation: Quick Bonding installation method requires no roof penetration, reduces installation time by 40%, and eliminates mounting hardware.
- Durable: First glassless module to pass standard durability tests including PID, salt mist, and ammonia corrosion resistance.
5-Year Warranty
Electrical Specifications
| Maximum Power Voltage (Vmp) | 21.2 V |
| Maximum Power Current (Imp) | 4.75 A |
| Open-circuit Voltage (Voc) | 25.2 V |
| Short-circuit Current (Isc) | 5.12 A |
| Module Efficiency | 15.7% |
| Operating Temperature | -40°C to 85°C |
| Maximum System Voltage | 600 V DC (IEC) |
| Maximum Series Fuse Rating | 20 A |
| Application Class | Class A |
| Power Tolerance | 0 / +5 W |
STC: Irradiance 1000W/m², Cell temperature 25°C, AM=1.5
Mechanical Characteristics

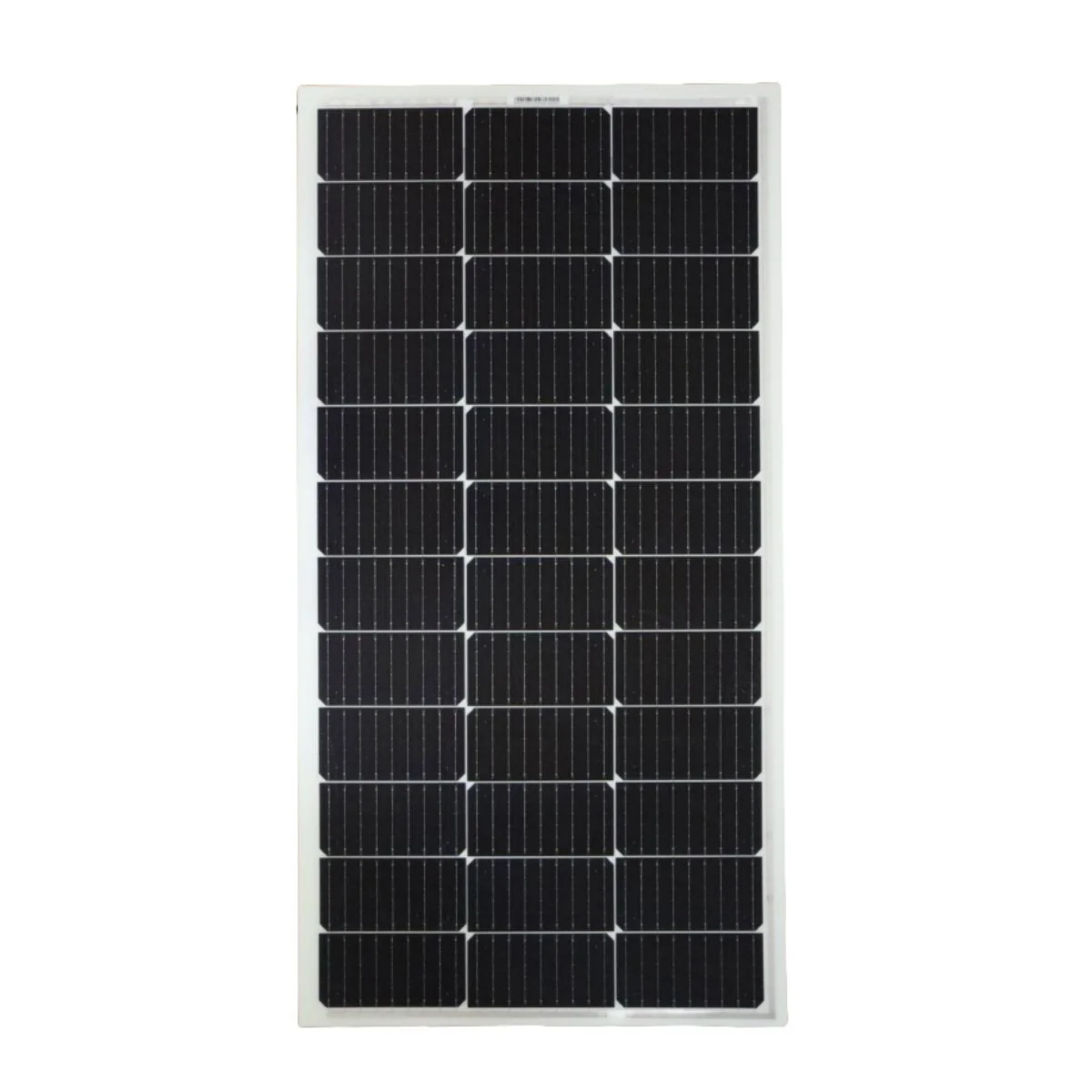

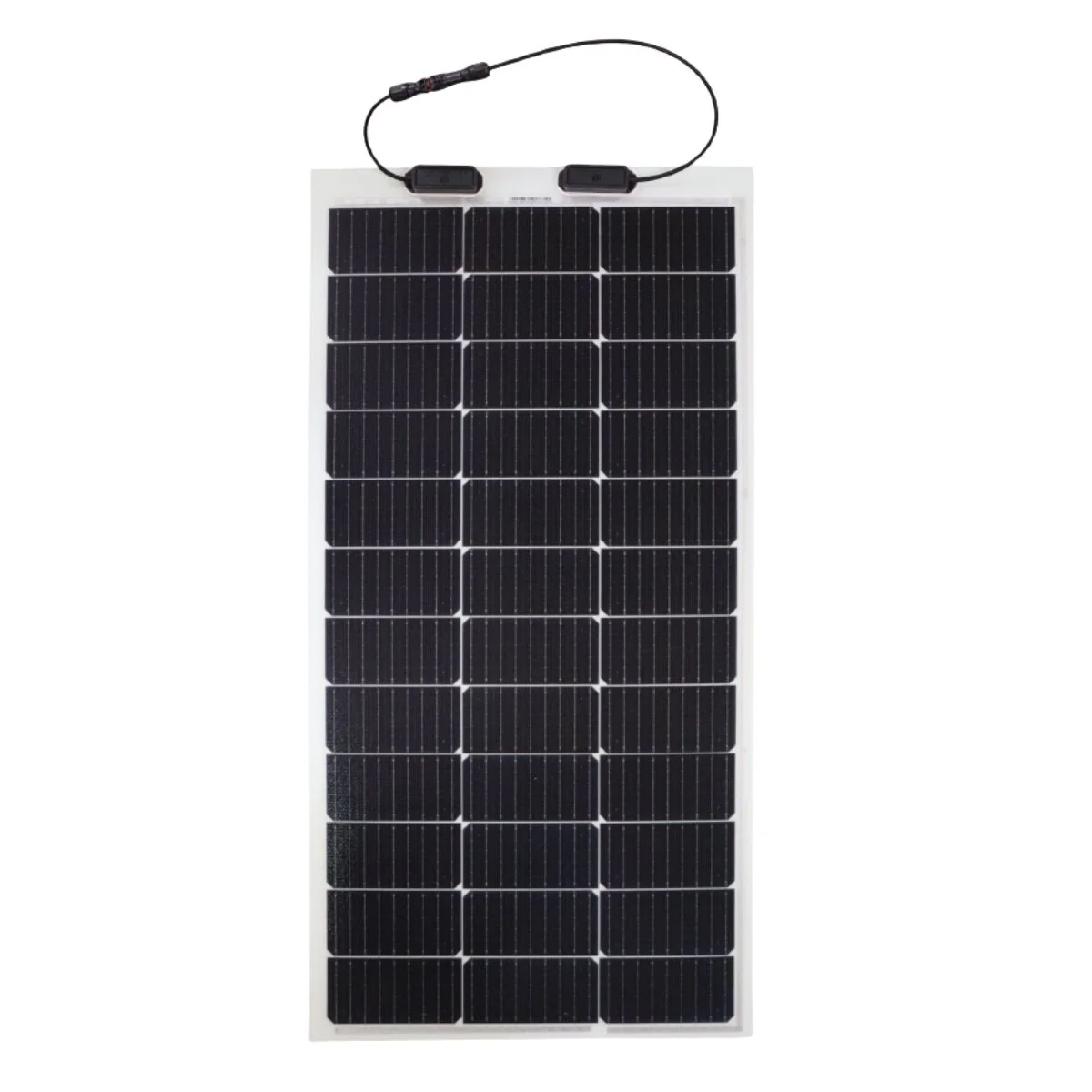

| Product Model | SMF100F-3X12UW |
| Solar Cell | Mono (6 inches) |
| No. of Cells | 36 (3 × 12) |
| Module Dimensions | 1093 × 552 × 2 mm |
| Weight | 2.1 kg |
| Backsheet | White |
| Junction Box | IP68 rated |
| Output Cables | Photovoltaic cable 4.0 mm², (+)150 mm / (-)450 mm |
| Connector | MC4 compatible |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards.
