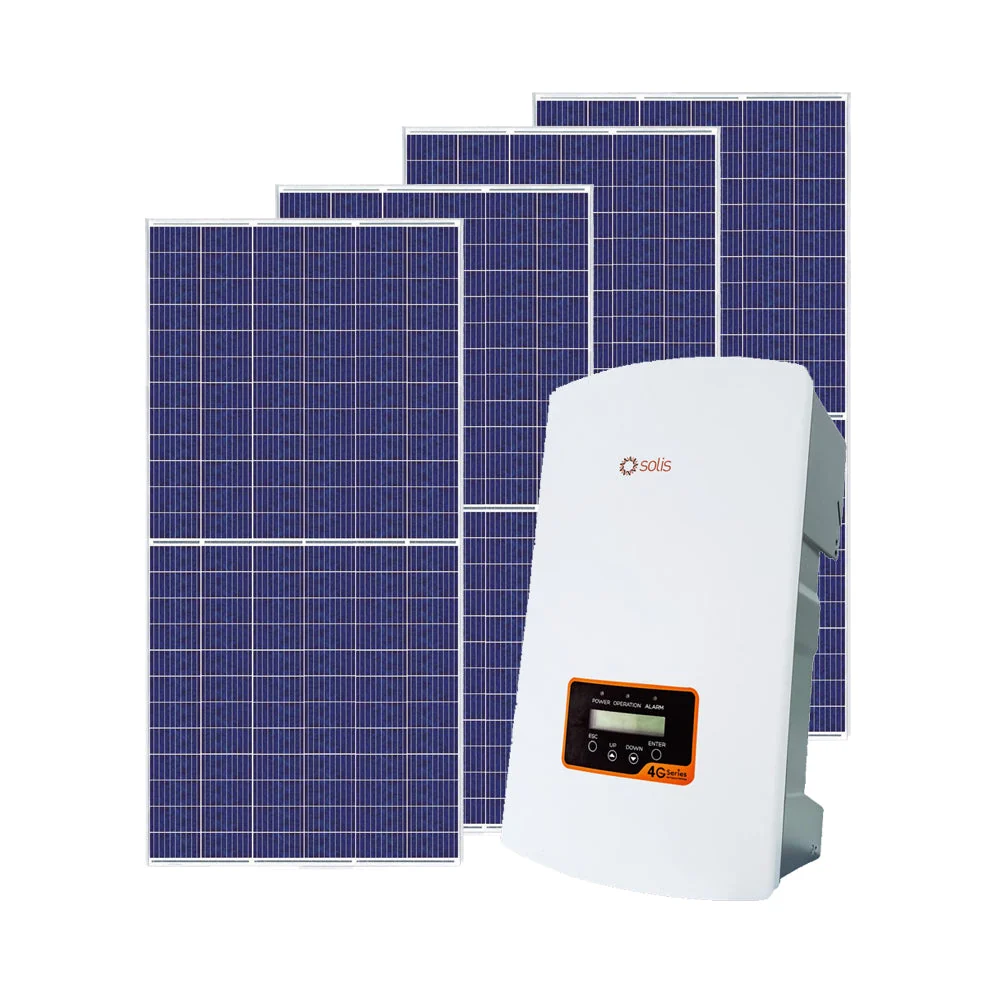

Solis 8.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Solis 8.0kW Grid-tie Kit contains the following components

• 18 x JA Solar 545W Mono Percium Half-cell Solar Panel.
• 1 x Solis 4G 8.0kW Dual MPPT 3-Phase Grid Tie Inverter.
• 1 x K&N 63A Three Phase AC Switch Disconnector.
• 1 x K&N 25A/450V – 11A/920V Single String DC Switch Disconnector
• 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD.
• 3 x MC4 Pre terminated cable 2m (Pack of 2).
• 1 x Multi Contact Cable Coupler Pack – MC4.
• 20m x Sustainable 6mm² Black Panelflex.
• 20m x Sustainable 6mm² Red Panelflex.
• 20m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable.
• 20m x Sustainable 6mm² Red Double Insulated Halogen Free Solar Cable.
• 1 x Optional Roof Mounting System.

PV Performance Estimation
A. Installation Data – New MCS Calculation

• Installed capacity of PV system – kWP (stc): 8.200 KWp.
• Orientation of the PV system – degrees from South: 0°.
• Inclination of system – degrees from horizontal: 35°.

B. Calculation

• kWh/kWp (KK) from table1: 1,673 kWh/kWp.
• Shade factor (SF): 1.00.
• Estimated annual output (kWpxKKxSF): 13,716 kWh.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards.
