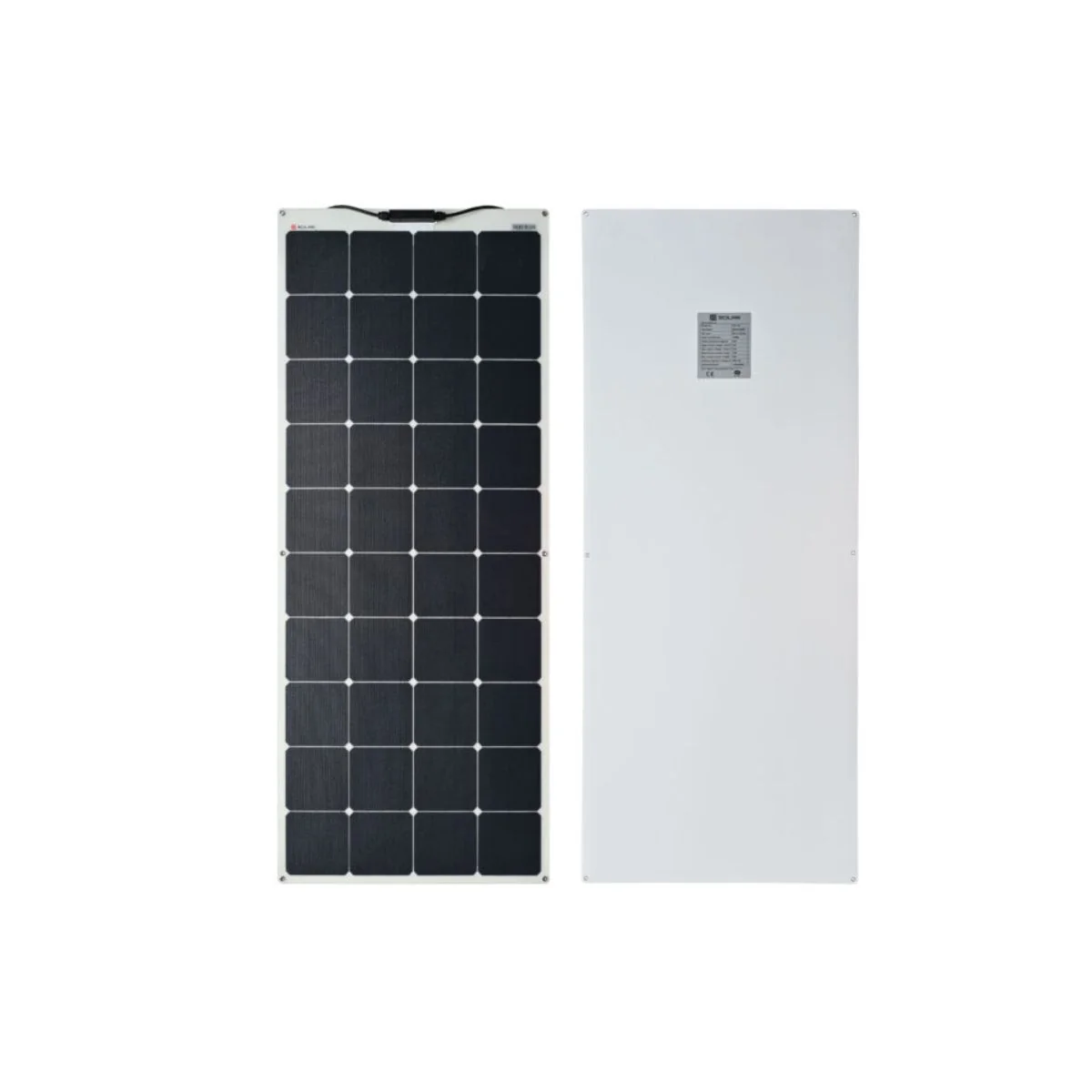

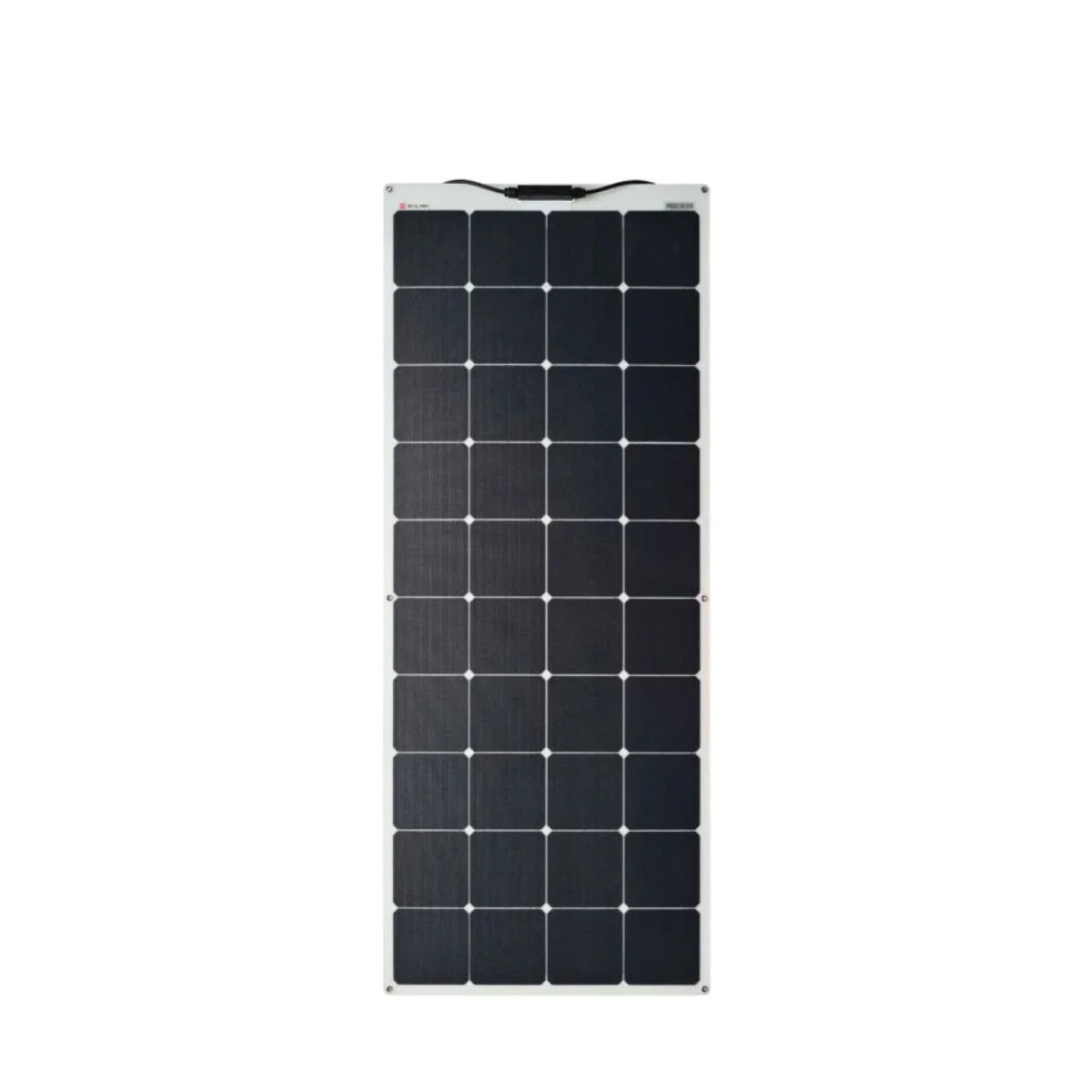

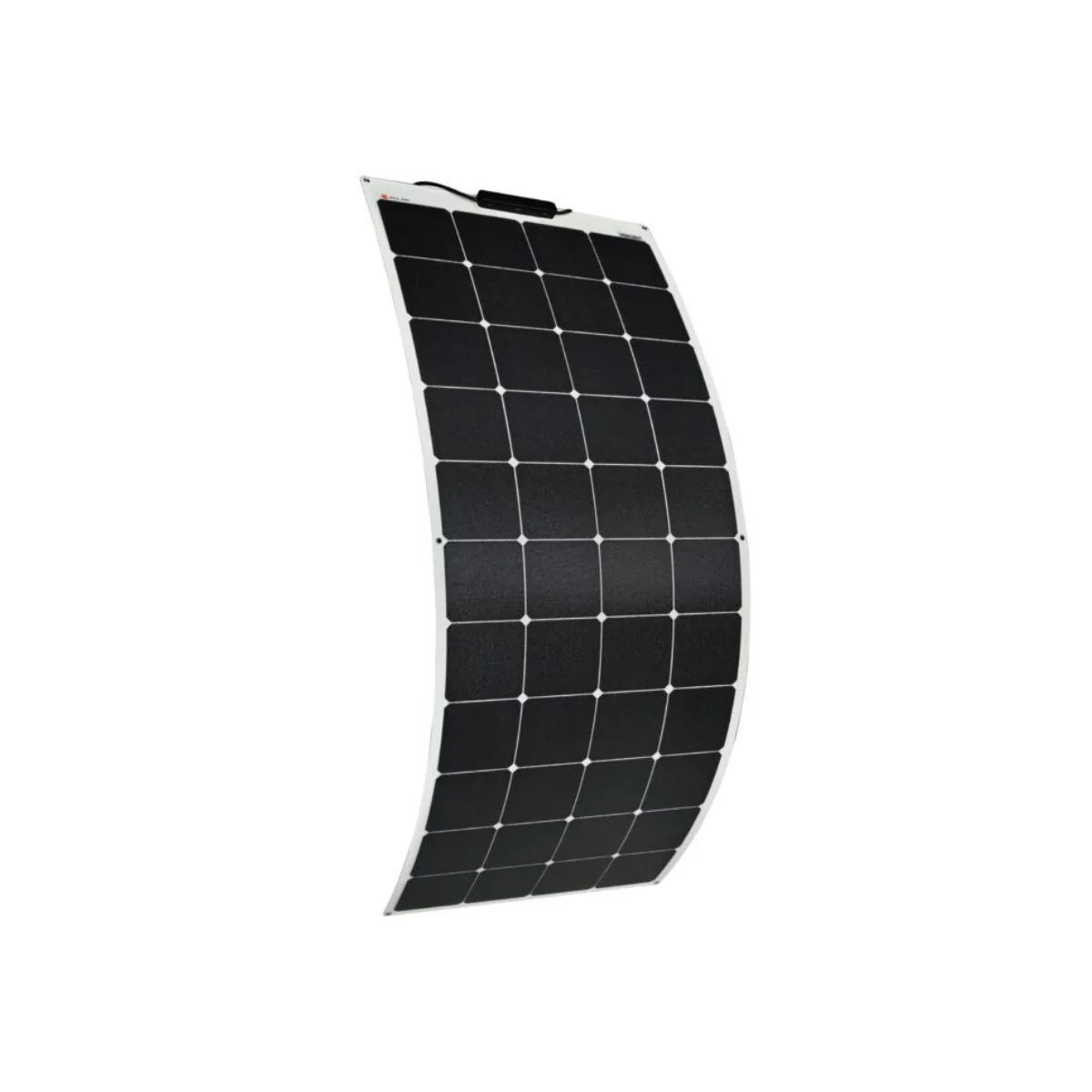

CS High Efficient 155W Flexible Solar Panel

The CS Highly Efficient Flexible Solar Panel 150W (FSP155) is an innovative glass-free photovoltaic panel that combines advanced crystalline silicon solar cell technology with polymer composite materials. This design allows for lightweight, ultra-thin, and flexible solar panels, weighing only 3.5 kg/m²—just 30% of traditional rigid panels. Its durability, flexibility, and high efficiency make it ideal for RVs, yachts, and other mobile or unconventional solar applications.

Key Features

• Strong impact resistance
• Ultra-lightweight and flexible
• Glass-free design
• Extremely thin at only 3mm
• Passed PID, salt mist, and ammonia corrosion tests

Technical Specifications

• Maximum Power (PMAX): 155W
• Open Circuit Voltage (VOC): 32.1V
• Voltage at PMAX (VMP): 27.3V
• Short Circuit Current (ISC): 6.02A
• Current at PMAX (IMP): 5.68A
• Cell Efficiency: 24.40%
• Maximum System Voltage: 200V DC (IEC)
• Voltage Temperature Coefficient: -0.236%/°C
• Current Temperature Coefficient: 0.05%/°C
• Output Power Tolerance: ±3%
• Operating Temperature: -40°C to +85°C
• Solar Cell Brand: SunPower
• Number of Cells & Connections: 44 (4×11)
• Module Dimensions: 1450 × 540 × 3 mm
• Weight: 3.4 kg
• Output Cable: JB (2×bypass diodes) + 900mm/4mm² cable, MC4 compatible
• Waterproof Junction Box: IP68
• Certifications: CE, ROHS
• Maximum Bending Arch Height: 270 mm

Warranty

• 2-Year standard warranty

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards.
