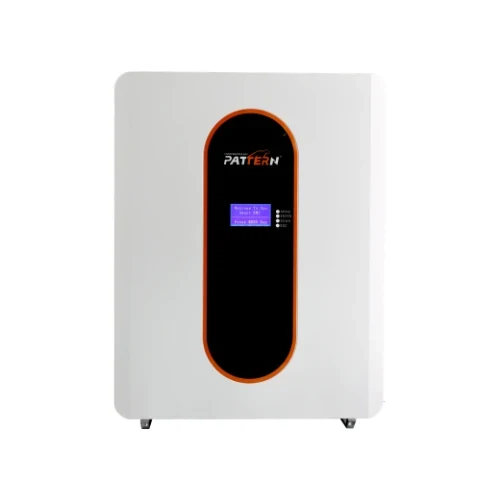

Patern 5kWh Lithium Battery for Solar Energy Storage & Backup Power
The Pattern 5kWh lithium battery is a high-performance wall-mounted energy storage solution designed for residential, commercial, and off-grid solar systems. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, this 5kWh lithium battery delivers outstanding safety, long cycle life, and dependable performance, making it an excellent alternative to traditional lead-acid batteries.
With a 51.2V 100Ah lithium battery configuration, this battery provides 5.12kWh of usable energy for solar power systems, backup power, and hybrid energy storage. Its compact wall-mounted design saves valuable floor space while offering a clean, modern installation for homes and businesses.
The 51.2V 100Ah lithium ion battery supports up to 16 batteries connected in parallel, allowing you to expand your storage capacity from 5.12kWh to over 80kWh as your energy needs grow. It is compatible with multiple inverter brands and features CAN, RS485, and RS232 communication for seamless system integration.
Designed for durability and efficiency, this 51.2V lithium battery 100Ah offers up to 20 times the cycle life of conventional lead-acid batteries while weighing significantly less. The integrated Battery Management System (BMS) protects against overcharging, over-discharging, overheating, short circuits, and overcurrent, ensuring reliable long-term operation.
Whether you’re upgrading an existing solar installation or building a new energy storage system, the lithium ion battery 51.2V 100Ah provides reliable, maintenance-free power for years to come.
Key Features
- Premium 5kWh lithium battery with 5.12kWh usable energy
- High-performance 51.2V 100Ah lithium battery
- Advanced LiFePO4 (Lithium Iron Phosphate) technology
- Stylish wall-mounted design for easy installation
- Supports up to 16 batteries in parallel
- Compatible with multiple inverter brands
- Intelligent Battery Management System (BMS)
- CAN, RS485 & RS232 communication
- Maximum 1C charge and discharge rate
- IP54-rated enclosure
- Up to 15-year design life
- Lightweight, maintenance-free construction
- Ideal for solar energy storage, backup power, off-grid systems, homes, and commercial applications
Technical Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy Capacity | 5.12kWh |
| Best Operating Voltage | 43V–54.5V |
| Maximum Charging Voltage | 57.6V |
| Recommended Charging Voltage | 56.4V |
| Maximum Continuous Output Power | 5500W |
| Peak Output Power | 7500W |
| Communication | CAN, RS485, RS232 |
| Short Circuit Protection | Yes |
| IP Rating | IP54 |
| Dimensions | 480 × 170 × 500 mm |
| Weight | 49kg |
| Design Life | 15 Years |
| Parallel Support | Up to 16 Units |
Battery Charging Parameters
- Battery Type: USE
- Bulk Charge Voltage: 56.4V–56.6V
- Float Charge Voltage: 54V
- Cut-Off Voltage: 47V
What’s Included
- 1 × Patern 5kWh Lithium Battery
- Wall Mounting Brackets Included
5-Year Warranty
The Patern 5kWh lithium battery includes a 5-year manufacturer’s warranty, providing confidence and long-term reliability for your solar energy storage investment.
Installation Requirements
All batteries must be installed by a qualified electrical wireman or master electrician registered with the Department of Labour. Installation must comply with SANS 10142 standards, and a valid Certificate of Compliance (COC) must be issued. Warranty claims may require installation photos, a valid COC, and proof of professional installation.
