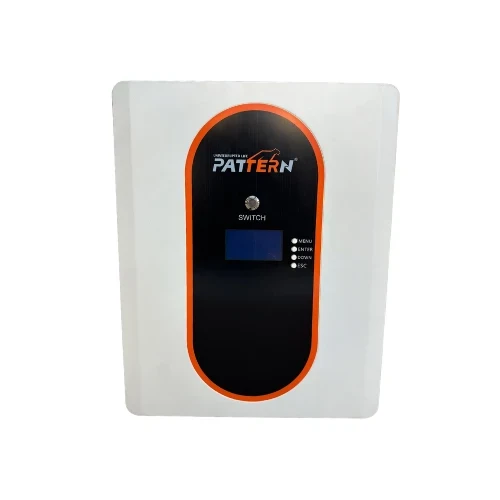

Pattern 24V 100Ah Lithium Battery for Solar, Backup & Off-Grid Power
The Pattern 24V 100Ah lithium battery is a powerful and efficient energy storage solution designed for residential, commercial, and off-grid applications. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, this 24V 100Ah lithium ion battery delivers reliable performance, enhanced safety, and a long service life, making it an excellent replacement for traditional lead-acid batteries.
Whether you’re installing a solar power system, backup energy solution, RV, caravan, or marine application, this 24V lithium battery 100Ah provides dependable deep-cycle performance with minimal maintenance. With a storage capacity of 2.56kWh, the battery is suitable for both on-grid and off-grid energy systems and can be expanded by connecting up to 16 units in parallel, increasing total storage capacity to 40.96kWh.
Compared to conventional batteries, the lithium ion battery 24V 100Ah offers higher energy density, faster charging, longer cycle life, and improved efficiency. Its intelligent Battery Management System (BMS) protects against overcharging, over-discharging, overheating, overcurrent, and short circuits, ensuring safe and reliable operation.
If you’re looking for a durable 24V 100Ah battery for solar energy storage or backup power, the Patern battery provides exceptional value, high performance, and long-lasting reliability.
Key Features
- Premium 24V 100Ah lithium battery
- High-performance 24V 100Ah lithium ion battery
- 2.56kWh energy storage capacity
- Advanced LiFePO4 battery technology
- Long lifespan with over 4,000 charge cycles
- Built-in Battery Management System (BMS)
- Supports up to 16 batteries in parallel (40.96kWh)
- Up to 95% Depth of Discharge (DoD)
- CAN & RS485 communication
- Lightweight wall-mounted design
- Fast charging and maintenance-free operation
- Ideal for solar systems, backup power, RVs, caravans, marine, and off-grid applications
Technical Specifications
| Specification | Details |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2.56kWh |
| Energy Density | 2560Wh |
| Installation | Wall Mounted |
| Cycle Life | 4,000 Cycles |
| Recommended Charge Current | 50A |
| Maximum Charge Current | 75A |
| Recommended Discharge Current | 50A |
| Maximum Continuous Discharge | 100A |
| Peak Discharge Current | 130A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| IP Rating | IP20 |
| Operating Temperature | Charging: 0°C to +55°C / Discharging: -20°C to +55°C |
| Storage Temperature | -10°C to +35°C |
| Weight | Approx. 23kg |
| Maximum Parallel Connection | 16 Units |
What’s Included
- 1 × Patern 24V 100Ah Lithium Battery
- 1 × Communication Cable
- 1 × Wall Mounting Bracket
- 1 × User Manual
5-Year Warranty
The Pattern 24V 100Ah battery is backed by a 5-year warranty for dependable long-term performance.
Installation Requirements
All batteries must be installed by a qualified electrical wireman or master electrician registered with the Department of Labour. Installation must comply with SANS 10142 standards, and a valid Certificate of Compliance (COC) must be issued. Warranty claims may require installation photos, a valid COC, and proof of professional installation.
